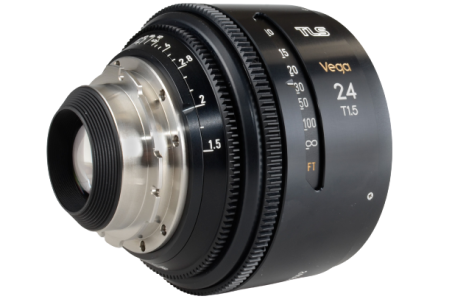

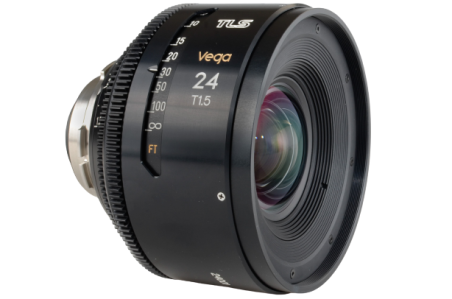

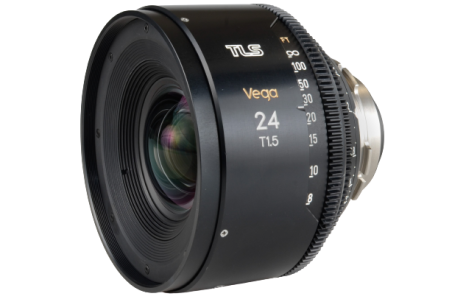

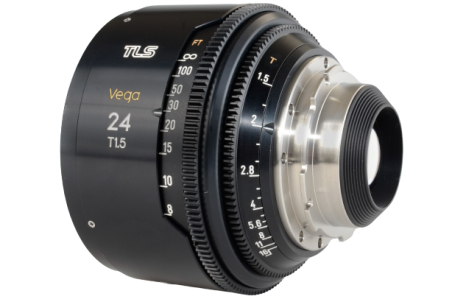

Vega 24mm

Bookmark and Share

Vega lenses were developed with filmmakers in mind in response to the market’s growing demand for lenses capable of covering the larger full frame digital camera format. TLS’s latest development, Vega, is a new series of Full Frame cine prime lenses. Vega exists in a set of ten lenses, including 20mm, 24mm, 28mm, 35mm, 50mm, 58mm, 85mm, 105mm, 135mm and 200mm focal lengths, ranging from T1.5 to T2. TLS was commissioned by Take 2 Films to design a light and fast, full frame set of lenses to match the already successful 80-200/ T.2.8 Morpheus, allowing cinematographers the option of combining zoom and prime lenses on productions, without concerns of an unmatched look.

The Vega lenses, although sharp, have a beautiful smooth look with a tiny amount of fall off towards the corners. They also have a stunning bokeh as a result of their 16 blade circular iris and when wide open, can offer a very narrow depth of field.

Release and availability of full set to be announced

Vega 24mm Specification

20mm 24mm 28mm 35mm 50mm 85mm 105mm 135mm
Mount PL PL PL PL PL PL PL PL
T-Stop T2 T1.5 TBD T1.5 T1.5 T1.5 T1.5 T2
Min. Object Distance typ. 8" 10" TBD 12" 15" 2'9" 3'3" 3'6"
Front Diameter (mm) 110mm 110mm TBD 110mm 110m 110mm 110mm 110mm
Total Length *(mm) 90mm 90mm TBD 90mm 80mm 90mm 100mm 117mm
Total Length *(inches) 3 1/2" 3 1/2" TBD 3 1/2" 3 1/8" 3 1/2" 4" 4 5/8"
Weight **(g) 1360g 1410g TBD 1570g 1060g 1440g 1800g 1710g
Weight **(lbs) 3lbs 3lbs 1oz TBD 3lbs 5oz 2lbs 4oz 3lbs 2oz 4lbs 3lbs 8oz


* Total approximate length is measured from the flange to the front of lens

** Weight subject to change with further developments
