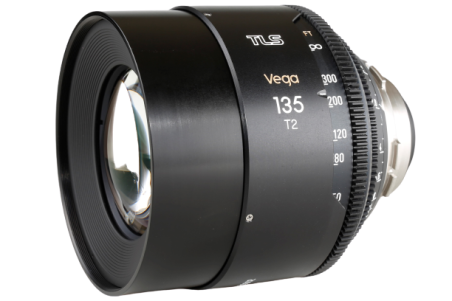

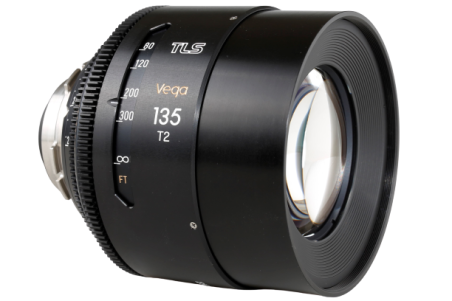

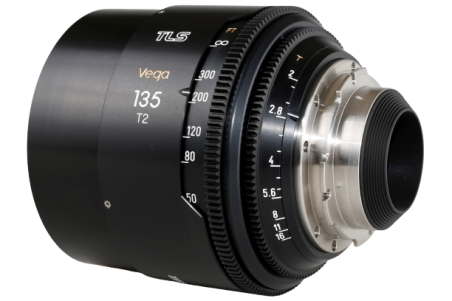

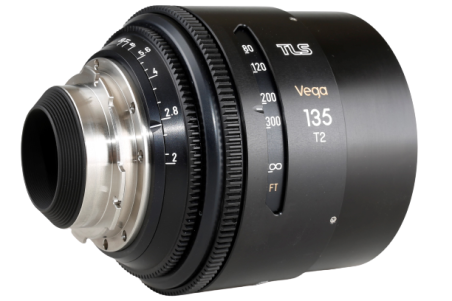

Vega 135mm

  • Focal length: 135mm

  • T Stop: T2

  • Close focus: 3'6

  • Front diameter: 110mm

  • Price: POA (Price on Application)

Vega lenses were developed with filmmakers in mind in response to the market’s growing demand for lenses capable of covering the larger full frame digital camera format. TLS’s latest development, Vega, is a new series of Full Frame cine prime lenses. Vega exists in a set of ten lenses, including 20mm, 24mm, 28mm, 35mm, 50mm, 58mm, 85mm, 105mm, 135mm and 200mm focal lengths, ranging from T1.5 to T2.

The Vega lenses, although sharp, have a beautiful smooth look with a tiny amount of fall off towards the corners. They also have a stunning bokeh as a result of their 16 blade circular iris and when wide open, can offer a very narrow depth of field.

Demonstration Video

Here is a lens test demonstration of the full range of Vega lenses.

Vega 135mm Specification

20mm 24mm 35mm 50mm 58mm 85mm 105mm 135mm
Mount PL PL PL PL PL PL PL PL
T-Stop T2 T1.5 T1.5 T1.5 T1.5 T1.5 T1.5 T2
Min. Object Distance typ. 8" 10" 12" 15" 18" 2'9" 3'3 3'6
Front Diameter (mm) 110mm 110mm 110mm 110m 110mm 110mm 110mm 110mm
Total Length *(mm) 90mm 90mm 90mm 80mm 80mm 90mm 100mm 117mm
Total Length *(inches) 3 1/2" 3 1/2" 3 1/2" 3 1/8" 3 1/8" 3 1/2" 4" 4 5/8"
Weight **(g) 1360g 1410g 1570g 1060g 1200g 1440g 1800g 1710g
Weight **(lbs) 3lbs 3lbs 1oz 3lbs 5oz 2lbs 4oz 2lbs 10oz 3lbs 2oz 4lbs 3lbs 8oz

* Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
