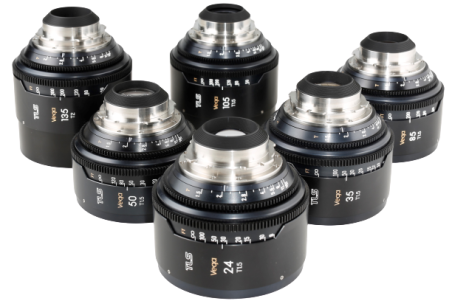

TLS Vega lenses

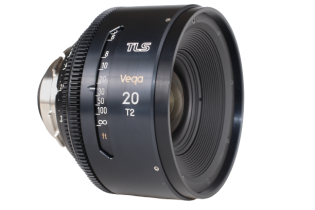

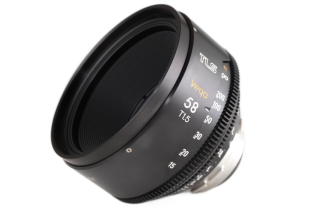

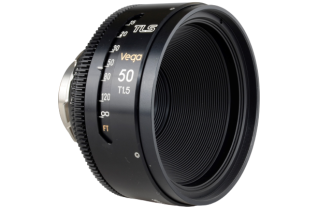

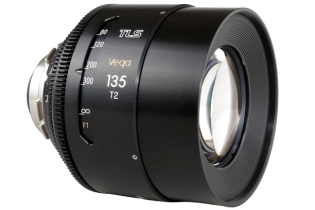

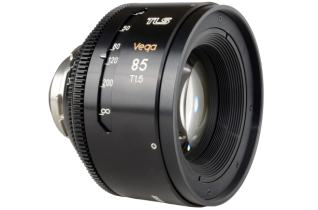

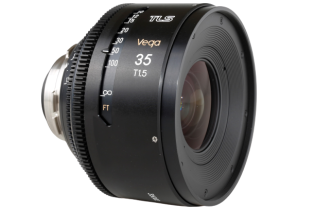

Vega lenses were developed with filmmakers in mind in response to the market’s growing demand for lenses capable of covering the larger full frame digital camera format. TLS’s latest development, Vega, is a new series of Full Frame cine prime lenses. Vega exists in a set of ten lenses, including 20mm, 24mm, 35mm, 50mm, 58mm, 85mm, 105mm and 135mm focal lengths, ranging from T1.5 to T2.

The Vega lenses, although sharp, have a beautiful smooth look with a tiny amount of fall off towards the corners. They also have a stunning bokeh as a result of their 16 blade circular iris and when wide open, can offer a very narrow depth of field.

These lenses are designed with floating elements so TLS have used their dual cam system to allow the optimum optical performance while still allowing some character. The housing is the same process as their renowned rehousing process. Therefore, there is 300 degrees focus rotation and solid stainless steel stops on both focus and iris movement. These lenses have accurate and repeatable dual focus scales, available in both imperial and metric.

The PL mount is shimmable and the focus and iris gears are in the same position in relation to the PL mount throughout the range. This makes changing focal lengths on set a much smoother process.

Demonstration Video

Here is a lens test demonstration of the full range of Vega lenses.

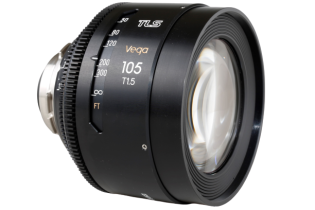

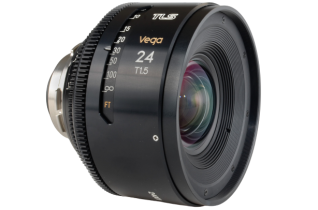

TLS Vega lenses Specification

20mm 24mm 35mm 50mm 58mm 85mm 105mm 135mm
Mount PL PL PL PL PL PL PL PL
T-Stop T2 T1.5 T1.5 T1.5 T1.5 T1.5 T1.5 T2
Min. Object Distance typ. 8" 10" 12" 15" 18" 2'9" 3'3 3'6
Front Diameter (mm) 110mm 110mm 110mm 110m 110mm 110mm 110mm 110mm
Total Length *(mm) 90mm 90mm 90mm 80mm 80mm 90mm 100mm 117mm
Total Length *(inches) 3 1/2" 3 1/2" 3 1/2" 3 1/8" 3 1/8" 3 1/2" 4" 4 5/8"
Weight **(g) 1360g 1410g 1570g 1060g 1200g 1440g 1800g 1710g
Weight **(lbs) 3lbs 3lbs 1oz 3lbs 5oz 2lbs 4oz 2lbs 10oz 3lbs 2oz 4lbs 3lbs 8oz

* Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
