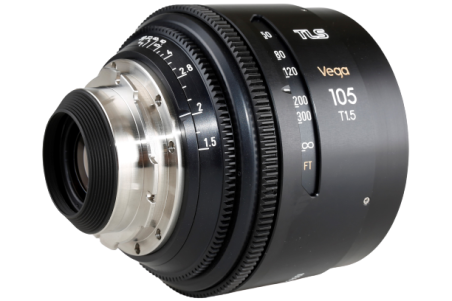

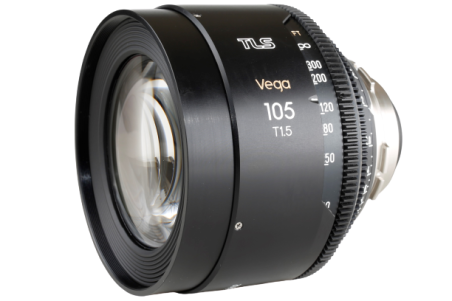

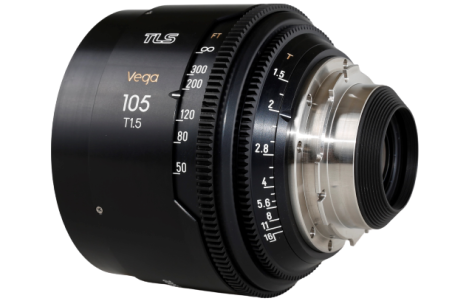

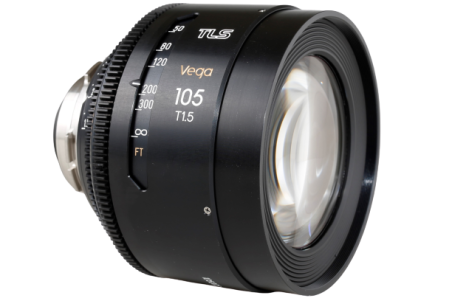

Vega 105mm
Focal length: 105mm
T Stop: T1.5
Close focus: 3'3
Front diameter: 110mm
Price: POA (Price on Application)
Vega lenses were developed with filmmakers in mind in response to the market’s growing demand for lenses capable of covering the larger full frame digital camera format. TLS’s latest development, Vega, is a new series of Full Frame cine prime lenses. Vega exists in a set of ten lenses, including 20mm, 24mm, 28mm, 35mm, 50mm, 58mm, 85mm, 105mm, 135mm and 200mm focal lengths, ranging from T1.5 to T2.
The Vega lenses, although sharp, have a beautiful smooth look with a tiny amount of fall off towards the corners. They also have a stunning bokeh as a result of their 16 blade circular iris and when wide open, can offer a very narrow depth of field.
Demonstration Video
Here is a lens test demonstration of the full range of Vega lenses.
Vega 105mm Specification
| 20mm | 24mm | 35mm | 50mm | 58mm | 85mm | 105mm | 135mm | |
|---|---|---|---|---|---|---|---|---|
| Mount | PL | PL | PL | PL | PL | PL | PL | PL |
| T-Stop | T2 | T1.5 | T1.5 | T1.5 | T1.5 | T1.5 | T1.5 | T2 |
| Min. Object Distance typ. | 8" | 10" | 12" | 15" | 18" | 2'9" | 3'3 | 3'6 |
| Front Diameter (mm) | 110mm | 110mm | 110mm | 110m | 110mm | 110mm | 110mm | 110mm |
| Total Length *(mm) | 90mm | 90mm | 90mm | 80mm | 80mm | 90mm | 100mm | 117mm |
| Total Length *(inches) | 3 1/2" | 3 1/2" | 3 1/2" | 3 1/8" | 3 1/8" | 3 1/2" | 4" | 4 5/8" |
| Weight **(g) | 1360g | 1410g | 1570g | 1060g | 1200g | 1440g | 1800g | 1710g |
| Weight **(lbs) | 3lbs | 3lbs 1oz | 3lbs 5oz | 2lbs 4oz | 2lbs 10oz | 3lbs 2oz | 4lbs | 3lbs 8oz |
* Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
