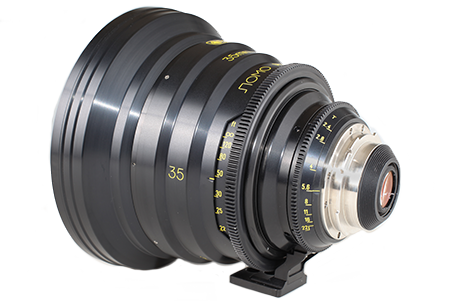

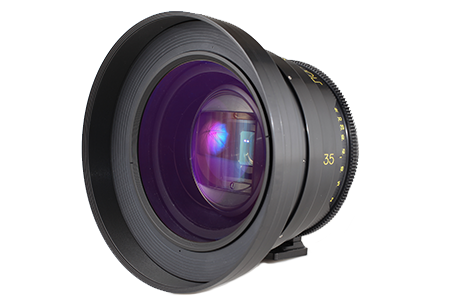

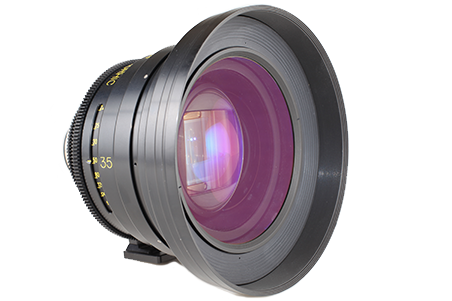

Lomo Anamorphic 35mm

Minimum object distance (MOD) closer than original Lomo lens.
190mm front diameter gives internal focus capability without vignetting at infinity.
Dual T scale markings on operation ring.
Integral support system with 3/8 UNC.
Thread support system standard bridges.
Fully PL mount and supplied with front and rear caps on standard.
0.8 mod gearing on both focus and T Scale.
Positive stops to focus and aperture.

Featuring improved lens mechanics whilst retaining original optical characteristics. The Lomo focus thread is replaced with the TLS focus cam system improving the lens operation by eliminating image shift and backlash (lost motion) in the focus mechanism, stable optical performance, robust performance throughout whole focus travel. Cam system delivers a clean focus movement whilst giving a more even spread of dual focus marking around the drive barrel. Clear distance markings available in either Imperial (feet/inches) or metric (metres) markings. Positive stops to focus and aperture to withstand the pressures of modern day motor drive systems.

Lomo Anamorphic 35mm Specification

Lomo Anamorphic	35mm	50mm	75mm	100mm	150mm
Mount	PL	PL	PL	PL	PL
T-Stop	2.5	2.5	2.5	2.4	4
Min. Object Distance typ.	2'10"	2'8"	2'8"	2'10"	5'8"
Front Diameter (mm)	190	143	143	143	TBC
Total Length* (mm)	176	169	203	235	TBC
Total Length* (inches)	6.93	6.64	7.98	9.25	TBC
Weight** (kg)	4.60	2.85	3.16	3.39	TBC
Weight** (lbs)	10.14	6.29	6.97	7.45	TBC

* Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
