Canon 18mm FD-X Single Lens

Price

£18,100

Availability

Available Now

Enquire Now

PRODUCT AVAILABLE NOW ENQUIRY

Canon 18mm FD-X Single Lens

Your Location

I am interested in purchasing the above product

By submitting this form you agree to our privacy policy.

Cancel

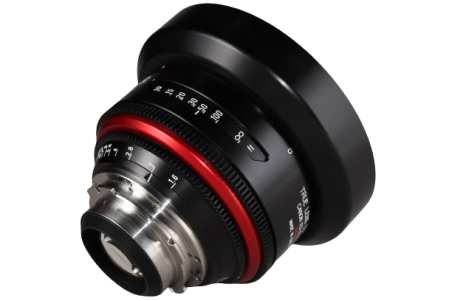

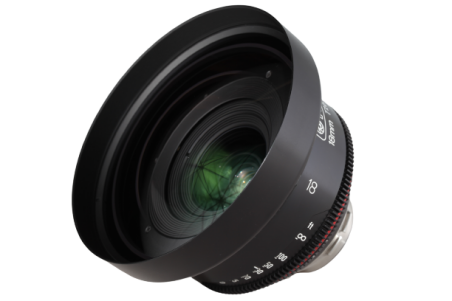

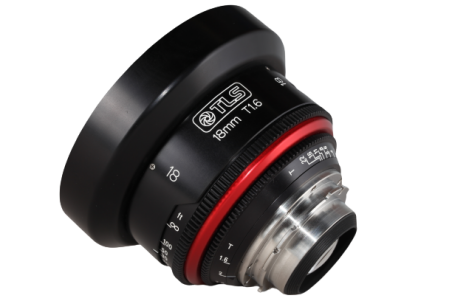

Here we have a single TLS rehoused lens up for sale Canon 18mm f1.4 FD-X (24mm with Angenieux adapter)

Mount: PL

T-Stop: 1.6

Min. Object Distance typ: 10"

Front Diameter: 143mm

Total Length: 100mm / 3.94"

To produce the 18mm FD-X lens, TLS use a 24mm FD f1.4 (either SSC or FD L version) along with a Angenieux x0.75 wide angle adaptor. This will create an 18mm lens that is fast (T1.6) and covers full frame sensors as well as matching with the Canon FD series of lenses. The Angenieux wide angle adaptor does add some distortion to the image, as well as some field curvature. However, the field curvature goes in the opposite direction to most tradition cine lenses, when the centre is in focus, items toward the edge of the frame, but further away become more in focus. Due to the size of the wide-angle adaptor and by keeping it all internal focussing, the front diameter of the lens is 143mm. The focus and iris gear positions match the rest of the FD set.

Cam driven focus system and chassis style lens housing allow matte boxes and other accessories to be attached to the front of the lens, without affecting focus movements. The benefit of zero backlash and image shift give accurate dual focus scales that repeat on direction and change with the cam drive system, giving a wide spread of markings through the scale.

Aluminium alloy, stainless steel, brass and robust construction guarantees a long serviceable life.

Click here for Warranty Information

Focal Range (mm)	Canon 18mm FD-X
Mount	PL
T-Stop	1.6
Min. Object Distance typ. (inches)	10"
Ø Image Circle Across T-stop	T1.6	T8	T22
Ø Image Circle - Close Focus (mm)	50	49	48
Ø Image Circle - Infinity (mm)	48	47	46
Front Diameter (mm)	143
Total Length* (inches)	3.94"
Total Length* (mm)	100
Weight** (kg)	1.6
Weight** (lbs)	3lb 8.5oz
