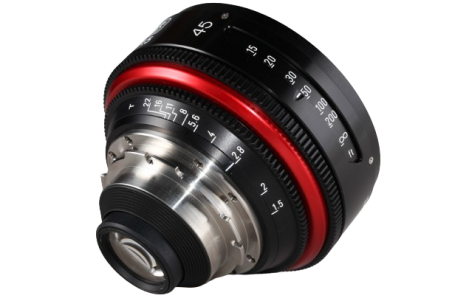

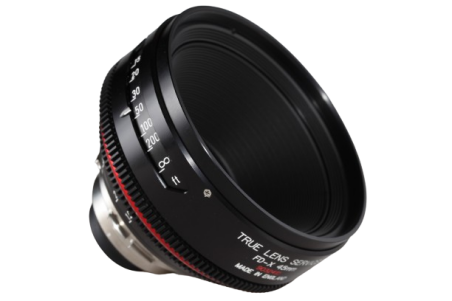

45mm Canon FD-X T1.5

Common focus and iris gear positions relative to mount flange, same as K35's
New circular iris design
Less than 13" minimum object distance.
110mm common front ring diameter.
PL mount; back focus adjustable with standard shims.
Price: POA (Price On Application)

The 45mm FD-X lens is an addition to the native Canon FD range of lenses. Ideal for situations where you need to fill the gap between the 35mm and the 50/55mm range. Boasting characteristics that match well with the FD series this lens, being a T1.5, adds to the versatility of the FD set. Furthermore, with a close focus of under 13" (32cm) it is a very capable lens.

The 45mm FD-X is based on a 45mm f1.4 Yashica lens. This lens was originally part of a package, with the lens fixed onto the front of the Yashica Lynx-14 camera. Therefore, it has remained unnoticed by the cine world as a viable option for use. However, after extensive testing as well as listening to advice from our trusted customers, we believe this is a suitable addition to the Canon FD focal range.

As part of the rehousing process, TLS have introduced a new circular iris assembly. This gives the bokeh the same shape as the rest of the rehoused set. Furthermore, the iris and focus gears are in the same position as well as maintaining a 110mm front diameter. The non-linear cam gives this 45mm the same 'feel' as the rest of the set when pulling focus too.

45mm Canon FD-X T1.5 Specification

Focal Range	10mm	10mm FD-X	14mm	18mm FD-X			20mm			24mm L			24mm SSC			28mm NFD			28mm SSC			35mm SSC			35mm FD-X			45mm FD-X			50mm			55mm			70mm FD-X	85mm L			85mm SSC			100mm			135mm			200mm
Mount	PL	PL/LPL	PL	PL			PL			PL			PL			PL			PL			PL			PL			PL			PL			PL			PL	PL			PL			PL			PL			PL
T-Stop	2.9	3	2.9	1.6			2.9			1.5			1.6			2.1			2.1			2.1			1.5			1.5			1.3			1.3			1.3	1.3			1.3			2.1			2.1			2.9
Min. Object Distance typ.	7"	10"	8"	10"			10"			12"			12"			12"			12"			12"			12"			13"			18"			2'			2'3"	3'			3'			2'2"			3'8"			4'7"
Ø Image Circle Across T-stop	TBC	TBC	TBC	T1.6	T8	T22	T2.9	T8	T22	T1.5	T8	T22	T1.6	T8	T22	T2.1	T8	T22	T2.1	T8	T22	T2.1	T8	T22	T1.5	T8	T22	T1.5	T8	T22	T1.3	T8	T22	T1.3	T8	T22	TBC	T1.3	T8	T22	T1.3	T8	T22	T2.1	T8	T22	T2.1	T8	T22	TBC
Ø Image Circle - Close Focus (mm)	TBC	TBC	TBC	50	49	48	53	53	51	52	52	49	52	52	49	53	53	53	53	53	53	60	60	60	60+	57	54	54	54	54	55	52	48	55	54	52	TBC	60+	59	55	60+	59	55	60+	57	54	60+	59	55	TBC
Ø Image Circle - Infinity (mm)	TBC	TBC	TBC	48	47	46	49	49	48	48	48	45	48	48	45	52	52	50	52	52	50	52	52	52	57	57	54	47	47	47	53	52	48	53	53	52	TBC	60+	60+	55	60+	60+	60+	60+	60+	60+	60+	60+	55	TBC
Front Diameter (mm)	125	143	110	143			110			110			110			110			110			110			110			110			110			110			110	110			110			110			110			110
Total Length (mm)*	88	104	75	100			69			80			80			80			80			90			90			69			83			73			125	94			94			98			119			130
Total Length (inches)*	3.50	4.10	3.00	3.94			2.70			3.13			3.00			3.13			3.13			3.5			3.5			2.7			3.25			2.9			4.2	3.75			3.75			3.88			4.7			5.1
Weight** (kg)	TBC	1.7	1.3	1.6			1.1			1.3			1.3			1.2			1.2			1.3			1.3			0.9			1.3			TBC			2.12	1.7			1.7			1.5			1.67			TBC
Weight** (lbs)	TBC	3.63	3	3.53			2.44			2.88			2.88			2.63			2.63			2.88			2.88			1.94			2.88			TBC			4.69	3.75			3.75			3.31			3.81			TBC

*Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
TBC - To be confirmed
