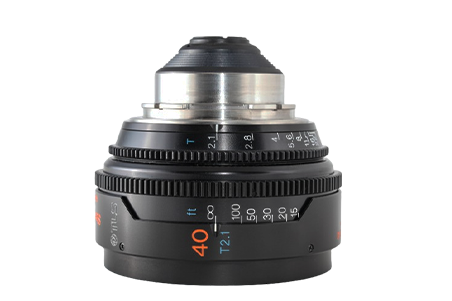

40mm Zeiss Standard Speed

  • Mount: PL
  • T-Stop: 2.1
  • Min. Object Distance typ: 10"
  • Ø Image Circle - Close focus: 49mm
  • Ø Image Circle - Infinity: 42mm
  • Front Diameter: 95mm
  • Total Length: 67mm
  • Total Weight: 0.85kg

The Zeiss Standard Speed lenses offer an extensive selection of options that are highly consistent at T2.1, making them an excellent pairing with existing Zeiss Super Speed lenses. These Standard Speed lenses are celebrated for their impressive performance, delivering a strong level of contrast while creating a desirable rendering that enhances digital cinematography.

With a re-engineered mechanical design on the Standard Speeds, we have developed a comprehensive set, with improved close focus. Currently offering focal lengths 16mm to 135mm, to provide cinematographers with additional creative tools.

With such a broad and versatile rehoused range, this project is expected to be highly popular among cinematographers working with Super 35 (S35) cameras who seek the desirability of Zeiss optics combined with a timeless, cinematic rendering.

To ensure consistency and ease of use on set, we have maintained a 95mm front diameter, along with matching iris and focus gear positions—a design choice that will align with the spacing of our rehoused B-Speed and Super Speed lenses.

The lenses remain remarkably lightweight, a practical advantage that make them ideal for handheld operation, Steadicam, gimbal setups, and other dynamic shooting environments where flexibility and mobility are essential. Now with the reliability of our renowned mechanical design.

As interest in vintage glass continues to grow in response to the hyper-sharpness of modern digital cinema, the Zeiss Standard Speed lenses have been rediscovered. They remain a powerful option for today’s cinematographers who seek not only technical excellence but also the soul and character that only classic optics can deliver.

Key Benefits

Improved close focus, for greater creative control Focus and iris gears aligned to the camera, for easy compatibility with follow focus systems95mm fixed front with no telescoping, to keep a compact form and mattbox friendly Repeatable individually marked focus scales, ensuring accurate, consistent focus pulling 300 degrees of rotation on non-linear cam for precise focus control Available with a replacement circular iris option for smooth bokeh

Improved Close Focus

Test on 16mm T2.1 | MOD : 6"

40mm Zeiss Standard Speed Specification

Focal Length (mm) 16 20 24 32 40 50 85 100 135
Mount PLPLPL PLPLPL PLPLPL
T-Stop 2.12.12.1 2.12.12.1 2.12.12.1
Min. Object Distance typ. (ft) 6"8"7" 7"10"11" 21"2'3'9"
Ø Image Circle Across T-stop T2.1T4T22 T2.1T4T22 T2.1T4T22 T2.1T4T22 T2.1T4T22 T2.1T4T22 T2.1T4T22 T2.1T4T22 T2.1T4T22
Ø Image Circle - Close Focus (mm) 323231 373737 323232 333333 494947 626262 626262 60+60+60+ 60+60+60+
Ø Image Circle - Infinity (mm) 323227 323232 303030 404040 424240 555555 575757 60+60+60+ 60+60+60+
Front Diameter (mm) 959595 959595 959595
Total Length (mm)* 616762 676773 99109115
Total Length (inches)* 2.38"2.63"2.50" 2.63"2.63"2.88" 3.88"4.25"4.50"
Weight (kg)** 10.9260.9 0.7340.8460.864 1.2621.452TBC
Weight (lbs)** 2.22.041.98 1.621.871.9 2.783.2TBC


*Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
^Yet to be confirmed
TBC - To be confirmed

TLS Rehoused Zeiss Standard Speed Brochure
