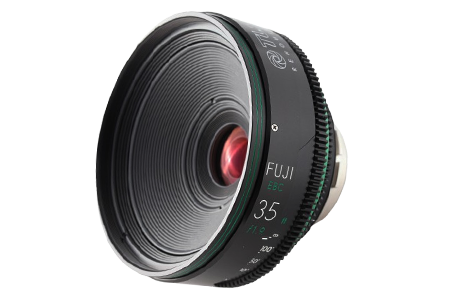

35mm Fuji EBC

Mount: PL
T -Stop: T2.1
Min. Object Distance typ.: 12"
Ø Image Circle - Close focus: 60+mm
Ø Image Circle - Infinity: 57mm
Front Diameter: 110mm
Total length: 65mm
Weight: 0.94kg

Legacy and Optical Character

The Fuji EBC (Electron Beam Coated) lenses were originally introduced in 1971. They were a groundbreaking series of full-frame SLR lenses, known for their fast apertures. They offer excellent low-light performance and deliver a naturally shallow depth of field. The lenses exhibit gentle softening toward the corners and produce striking, cinematic flares—characteristics highly sought after by filmmakers in search of a vintage aesthetic.

Fuji’s multi-coating process, pioneering for its time, allowed these lenses to manage light more effectively than most optics from the same era. Remarkably, a similar process is still used on today on Fuji’s more advanced optical designs.

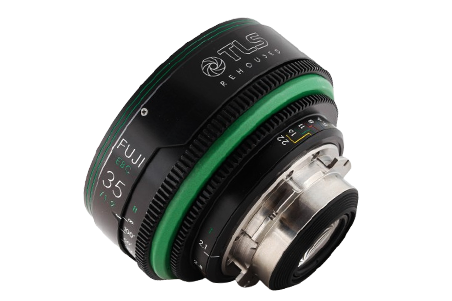

Rehousing and Mechanical Excellence

Each lens in this rehoused series has been meticulously re-engineered by TLS (True Lens Services) to meet modern cinema standards. The housings are crafted to TLS’s gold standard with each focal length including those with floating elements on a variable cam system, this not only maintains the maximum optical performance of the lens, but it also ensures a consistent mechanical feel across the entire set—an essential feature for focus pullers.

Lens Design

Aesthetically, the rehoused lenses honour their vintage origins. Design elements include coloured iris markings and a distinctive accent hue, maintaining a visual connection to the original optics while presenting a polished, contemporary finish.

Focal Range & Improved Close Focus Capability

There was no suitable EBC lens between 50-100mm, after looking at different options we chose to use the 50mm f1.4 EBC along with specific optics to create a 70mm T2 that fits perfectly into the set. The whole set has greatly improved MOD (minimum object distance), with the 70mm reaching a very impressive close focus of 18”.

Key Features

Key Features - 1. Fast apertures and full-frame coverage for exceptional low-light performance Key Features - 12.Advanced multi-coating for better light handling Key Features - 3. Soft corner rendering for a distinctive look Key Features - 4. A specially developed 70mm lens to bridge the 50–100mm gap Key Features - 5.Improved Close focus for greater creative control Key Features - 6. 16 blades iris delivers stunning bokeh

35mm Fuji EBC Specification

	19mm	24mm	28mm	35mm	50mm	70mm	100mm	135mm
Mount	PL	PL	PL	PL	PL	PL	PL	PL
T-Stop	3.8	2.9	2.1	2.1	1.4	2.2	2.9	2.7
Min. Object Distance typ.	8"	8"	12"	12"	16"	18"	2'2"	3'6"
Ø Image Circle - Close focus (mm)	50	60+	51	60+	54	60+	60+	60+
Ø Image Circle - Infinity (mm)	46	52	50	57	51	57	60+	60+
Front Diameter (mm)	110	110	110	110	110	110	110	110
*Total Length (mm)**	60	70	70	65	70	90	95	100
*Total Length (inches)**	2.36"	2.76"	2.76"	2.56"	2.76"	3.54"	3.74"	5.31"
Weight(kg)**	0.826	0.912	TBC	0.940	0.930	1.268	1.198	1.418
Weight(lbs)**	1.82	2.01	TBC	2.07	2.05	2.8	2.64	3.17

*Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
TBC - To be confirmed
