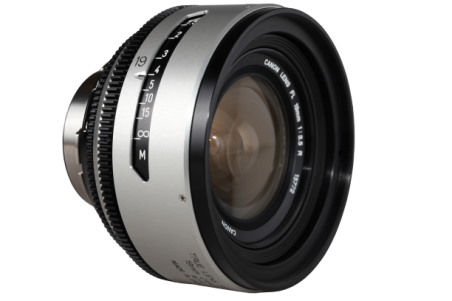

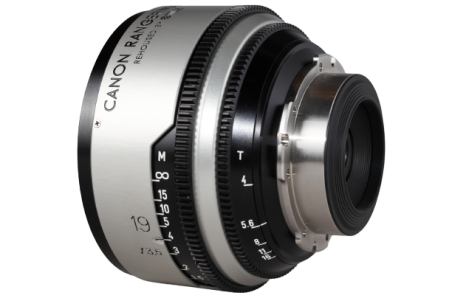

19mm Canon Rangefinder f3.5

MKII Longer Version
Common focus and iris gear positions relative to mount flange
110mm common front ring diameter.
LPL mount; back focus adjustable with standard shims

Cam driven focus system and chassis style lens housing allow matte boxes and other accessories to be attached to the front of the lens, without affecting focus movements. The benefit of zero backlash and image shift give accurate dual focus scales that repeat on direction and change with the cam drive system, giving a wide spread of markings through the scale.

Aluminium alloy, stainless steel, brass and robust construction guarantees a long serviceable life.

19mm Canon Rangefinder f3.5 Specification

TLS Canon Rangefinder	19 f3.5 FL			25 f1.5			25 f1.8			28 f1.8			35 f1.5			40 Canonet f1.7			48			50 f0.95 'Dream Lens'			58 f1.2 FL			85 f1.5			85 f1.8			100 f2			135 f2.5 SC FD			135 f2.5 FL
Mount	LPL			LPL			LPL			LPL			LPL			LPL			LPL			LPL			LPL			LPL			LPL			LPL			LPL			LPL
T-Stop	TBC			1.8			2.1			2.1			1.6			1.8			1.7			1.1			1.4			1.6			1.9			2.1			2.8			2.8
Min. Object Distance typ.	TBC			8"			8"			8"			13"			11"			12"			16"			19"			2'3			TBC			2'2"			3'6			3'6
Ø Image Circle	T4	T8	T16	T1.8	T8	T16	T2.1	T8	T16	T2.1	T8	T16	T1.6	T8	T16	T1.8	T8	T16	T1.7	T8	T16	T1.1	T8	T16	T1.4	T8	T16	T1.6	T8	T16	T1.9	T8	T16	T2.1	T8	T16	T2.8	T8	T16	T2.8	T8	T16
Close Focus (mm)	47	47	47	TBC	TBC	TBC	56	56	56	53	53	53	48	48	48	55	55	54	54	54	54	49	49	49	53	53	51	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+
Infinity (mm)	44	44	44	TBC	TBC	TBC	45	45	45	47	47	47	44	44	44	47	47	47	46	46	46	44	44	44	51	51	51	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+	60+
Front Diameter (mm)	110			110			110			110			110			110			110			110			110			110			110			110			110			110
Total Length (mm)*	TBC			67			70			70			59			110			78			110			110			110			110			102			122			119
Total Length (inches)*	TBC			2 5/8			2 3/4			2 3/4			2 3/16			2 5/8			3 1/16			2 5/8			2 5/8			3 13/32			3 13/32			4			4 13/16			4 11/16
Total Weight (kg)**	1.17			TBC			1.16			1.15			0.74			0.88			1.08			1.01			1.06			1.4			TBC			1.46			1.6			TBC
Total Weight (lbs)**	2.58			TBC			2.55			2.53			1.62			1.93			2.38			2.23			2.35			3.09			TBC			3.21			3.54			TBC

* Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments

Demonstration Video

Here is a lens test demonstration of the full range of Canon Rangefinder lenses.
