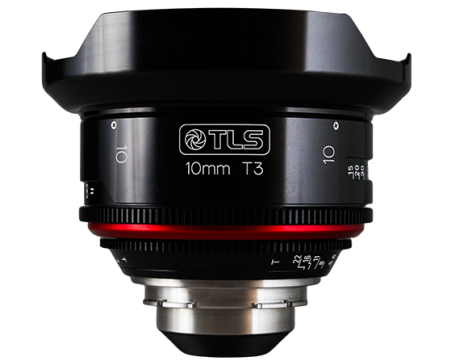

10mm Canon FD-X

Mount: PL / LPL
T -Stop: 3
Min. Object Distance typ.: 10"
Image circle : 45mm
Front Diameter: 143mm
Total length: 104mm
Weight: 1.7kg

Responding to the demand for an ultra-wide option within the Canon FD and K35 ranges, TLS is proud to introduce the Canon 10mm FD-X — a one-of-a-kind creation that covers Arri LF and Venice Open Gate with an impressive 45mm image circle.

To develop this lens, TLS combined optical elements from the Canon 14mm EF Mk I and the Angenieux Wide Angle adapter, merging both designs to achieve a truly distinctive result. This bespoke optical assembly has been carefully tuned to maintain visual consistency with the rest of the Canon FD series.

The result is a 10mm lens that delivers exceptional image coverage and the signature Canon FD aesthetic, with smooth tonal transitions and natural rendering.

The 10mm FD-X features a 143mm front diameter, with focus and iris positions that precisely matched to the rest of the FD set.

10mm Canon FD-X Specification

Focal Range	10mm	10mm FD-X	14mm	18mm FD-X			20mm			24mm L			24mm SSC			28mm NFD			28mm SSC			35mm SSC			35mm FD-X			45mm FD-X			50mm			55mm			70mm FD-X	85mm L			85mm SSC			100mm			135mm			200mm
Mount	PL	PL/LPL	PL	PL			PL			PL			PL			PL			PL			PL			PL			PL			PL			PL			PL	PL			PL			PL			PL			PL
T-Stop	2.9	3	2.9	1.6			2.9			1.5			1.6			2.1			2.1			2.1			1.5			1.5			1.3			1.3			1.3	1.3			1.3			2.1			2.1			2.9
Min. Object Distance typ.	7"	10"	8"	10"			10"			12"			12"			12"			12"			12"			12"			13"			18"			2'			2'3"	3'			3'			2'2"			3'8"			4'7"
Ø Image Circle Across T-stop	TBC	TBC	TBC	T1.6	T8	T22	T2.9	T8	T22	T1.5	T8	T22	T1.6	T8	T22	T2.1	T8	T22	T2.1	T8	T22	T2.1	T8	T22	T1.5	T8	T22	T1.5	T8	T22	T1.3	T8	T22	T1.3	T8	T22	TBC	T1.3	T8	T22	T1.3	T8	T22	T2.1	T8	T22	T2.1	T8	T22	TBC
Ø Image Circle - Close Focus (mm)	TBC	TBC	TBC	50	49	48	53	53	51	52	52	49	52	52	49	53	53	53	53	53	53	60	60	60	60+	57	54	54	54	54	55	52	48	55	54	52	TBC	60+	59	55	60+	59	55	60+	57	54	60+	59	55	TBC
Ø Image Circle - Infinity (mm)	TBC	TBC	TBC	48	47	46	49	49	48	48	48	45	48	48	45	52	52	50	52	52	50	52	52	52	57	57	54	47	47	47	53	52	48	53	53	52	TBC	60+	60+	55	60+	60+	60+	60+	60+	60+	60+	60+	55	TBC
Front Diameter (mm)	125	143	110	143			110			110			110			110			110			110			110			110			110			110			110	110			110			110			110			110
Total Length (mm)*	88	104	75	100			69			80			80			80			80			90			90			69			83			73			125	94			94			98			119			130
Total Length (inches)*	3.50	4.10	3.00	3.94			2.70			3.13			3.00			3.13			3.13			3.5			3.5			2.7			3.25			2.9			4.2	3.75			3.75			3.88			4.7			5.1
Weight** (kg)	TBC	1.7	1.3	1.6			1.1			1.3			1.3			1.2			1.2			1.3			1.3			0.9			1.3			TBC			2.12	1.7			1.7			1.5			1.67			TBC
Weight** (lbs)	TBC	3.63	3	3.53			2.44			2.88			2.88			2.63			2.63			2.88			2.88			1.94			2.88			TBC			4.69	3.75			3.75			3.31			3.81			TBC

*Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
TBC - To be confirmed
