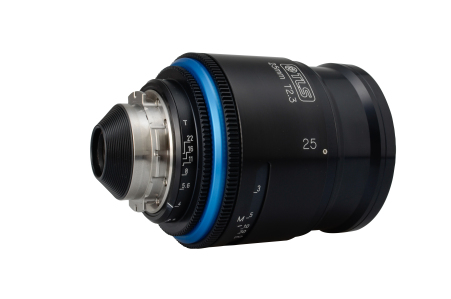

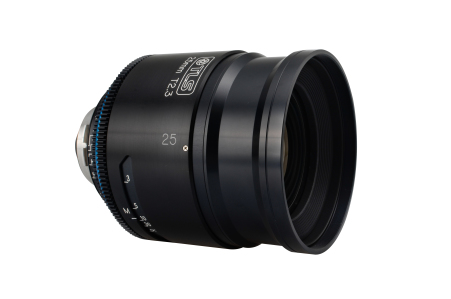

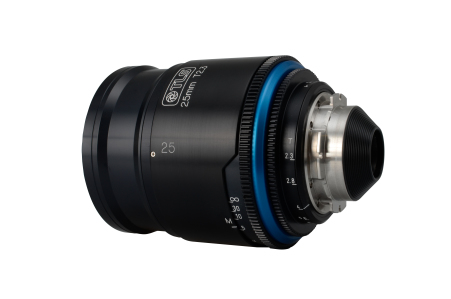

Kowa 25mm/T2.3 Cine Prominar

Mount: PL
T -Stop: 2.3
Min. Object Distance typ.: 11"
Front Diameter: 110mm
Total lengths: 141mm
Weight: 2.02kg

Cam driven focus system and chassis style lens housing allow matte boxes and other accessories to be attached to the front of the lens, without affecting focus movements. The benefit of zero backlash and image shift give accurate dual focus scales that repeat on direction and change with the cam drive system, giving a wide spread of markings through the scale.

Aluminium alloy, stainless steel, brass and robust construction guarantees along serviceable life.

Kowa 25mm/T2.3 Cine Prominar Specification

Focal Length (mm)	15	20	25	32	40	50	75	100
Mount	PL	PL	PL	PL	PL	PL	PL	PL
T-Stop	4	2.6	2.3	2.3	2.3	2.3	2.3	2.6
Min. Object Distance typ.	7"	11"	11"	11"	14"	20"	19"	3'3"
Front Diameter (mm)	125	110	110	110	110	110	110	110
Total Length (mm)*	55	108	141	68	68	68	88	128
Total Length (inches)*	2.19	4.25	5.55	2.69	2.69	2.69	3.44	5
Weight** (kg)	0.9	1.63	2.02	1.08	0.99	1.01	1.37	1.85
Weight** (lbs)	2.19	3.56	4.44	2.38	2.19	3.25	3.00	4.06

* Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
